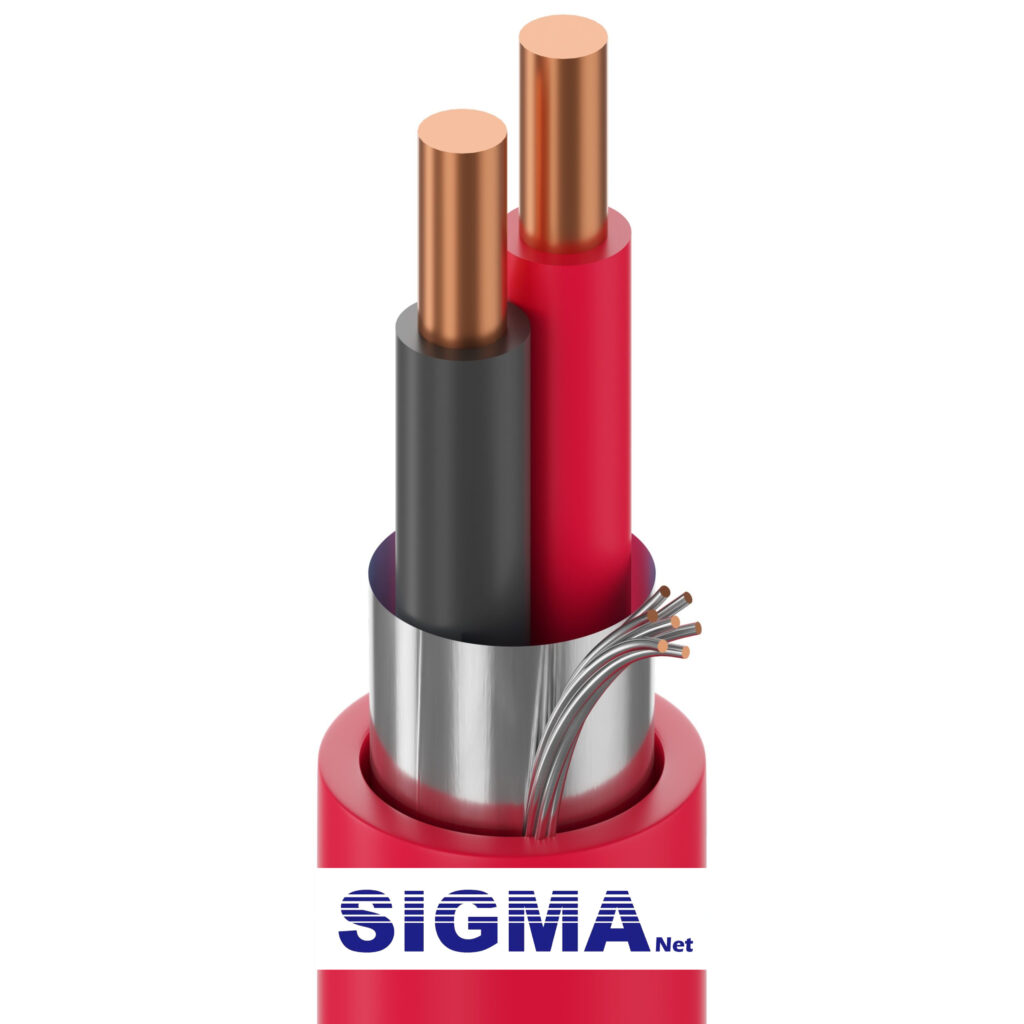

Electronic, 2 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR
Electronic, 2 Conductor 16AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR.
Download brochure to know more about our products.
Â
Suitable Applications | fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …) |
---|
Element | No. of Elements | Size | Stranding | Material |
---|---|---|---|---|
Conductor(s) | 2 | 16 | Solid | BC – Bare Copper |
Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
---|---|---|---|
PVC – Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.048 in (1.2 mm) | Black, Red |
Shield Type | Material | Coverage | Drainwire Type |
---|---|---|---|
Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC |
Material | Nom. Thickness | Nom. Diameter |
---|---|---|
PVC – Polyvinyl Chloride | 0.036 in (0.91 mm) | 0.241 in (6.12 mm) |
Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
---|---|---|---|
4.2 Ohm/1000ft | 57.5 pF/ft (189 pF/m) | 103.5 pF/ft (339.6 pF/m) | 11 Amps per Conductor at 25ºC |
UL Voltage Rating |
---|
300 V |
UL Temperature | Operating |
---|---|
105°C | -40°C To +105°C |
Stationary Min. | Installation Min. |
---|---|
3.61 in (91.7 mm) | 3.61 in (91.7 mm) |
Max. Pull Tension | 80 lbs (36 kg) |
---|---|
Bulk Cable Weight | 34 lbs/1000ft |
Environmental Suitability | Outdoor |
---|---|
Flammability / Reaction to Fire | UL1666 Riser, FT4, IEC 60332-1-2 |
CPR Compliance | CPR Euroclass: Eca |
NEC / UL Compliance | Article 760, CMR, FPLR |
AWM Compliance | AWM 2464 |
CEC / C(UL) Compliance | FAS105 |
European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
UK Regulation Compliance | UKCA Mark |
APAC Compliance | China RoHS II (GB/T 26572-2011) |
Other Standard Compliance(s) | California State Fire Marshall |
Enhanced Fire Alarm Systems: Electronic Cable for Safety
Introducing our Electronic Cable, a top-of-the-line solution designed for fire alarms, indoor applications, and low voltage analog signals. This cable is engineered to deliver superior performance and reliability, making it the ideal choice for a wide range of electronic systems. Whether you’re looking to upgrade your fire alarm system or enhance your low voltage control applications, our Electronic Cable is the perfect solution.
Product Overview
- Construction: Features two solid 16 AWG bare copper conductors, PVC insulation, overall Beldfoil® shield, and a red PVC outer jacket.
- Applications: Ideal for fire alarms, indoor applications, low voltage analog signals (4-20ma, 0-10v), and low voltage control (24v).
- Electrical Characteristics: Offers a nominal impedance of 4.2 Ohm/1000ft and a maximum current of 11 Amps per conductor at 25ºC for optimal performance.
- Standards and Compliance: Compliant with UL1666 Riser, FT4, IEC 60332-1-2, CPR Euroclass Eca, Article 760, CMR, FPLR, AWM 2464, and other industry standards.
Superior Performance and Reliability
- Enhanced Shielding: The overall Beldfoil® shield provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable signal transmission.
- Durable Design: The red PVC outer jacket and rugged construction make our cable suitable for outdoor use, offering durability and longevity in harsh environments.
- High Temperature Rating: With a UL temperature rating of 105°C, our cable can withstand high temperatures, making it suitable for a wide range of applications.
Standards and Compliance
- CPR Euroclass Eca Compliance: Our cable meets CPR Euroclass Eca standards, ensuring it meets strict safety and performance requirements.
- AWM 2464 Compliance: Compliant with AWM 2464 standards, our cable is suitable for a variety of applications.
- CEC / C(UL) Compliance: Our cable is compliant with CEC / C(UL) standards, ensuring it meets stringent safety and performance requirements.
Environmentally Friendly Design
- RoHS Compliance: Our cable is RoHS compliant, ensuring it is free from hazardous substances and environmentally friendly.
- Sustainability: Compliant with EU Directive 2011/65/EU (RoHS 2) and EU Directive 2012/19/EU (WEEE), our cable meets stringent environmental standards.
Conclusion
Upgrade your electronic systems with confidence. Our Electronic Cable offers unmatched performance, reliability, and efficiency, making it the ideal choice for fire alarms, indoor applications, and low voltage control systems. Contact us today to learn more about how our cable can enhance your electronic systems.
