Electronic 2 C #16 Sol BC-PVC

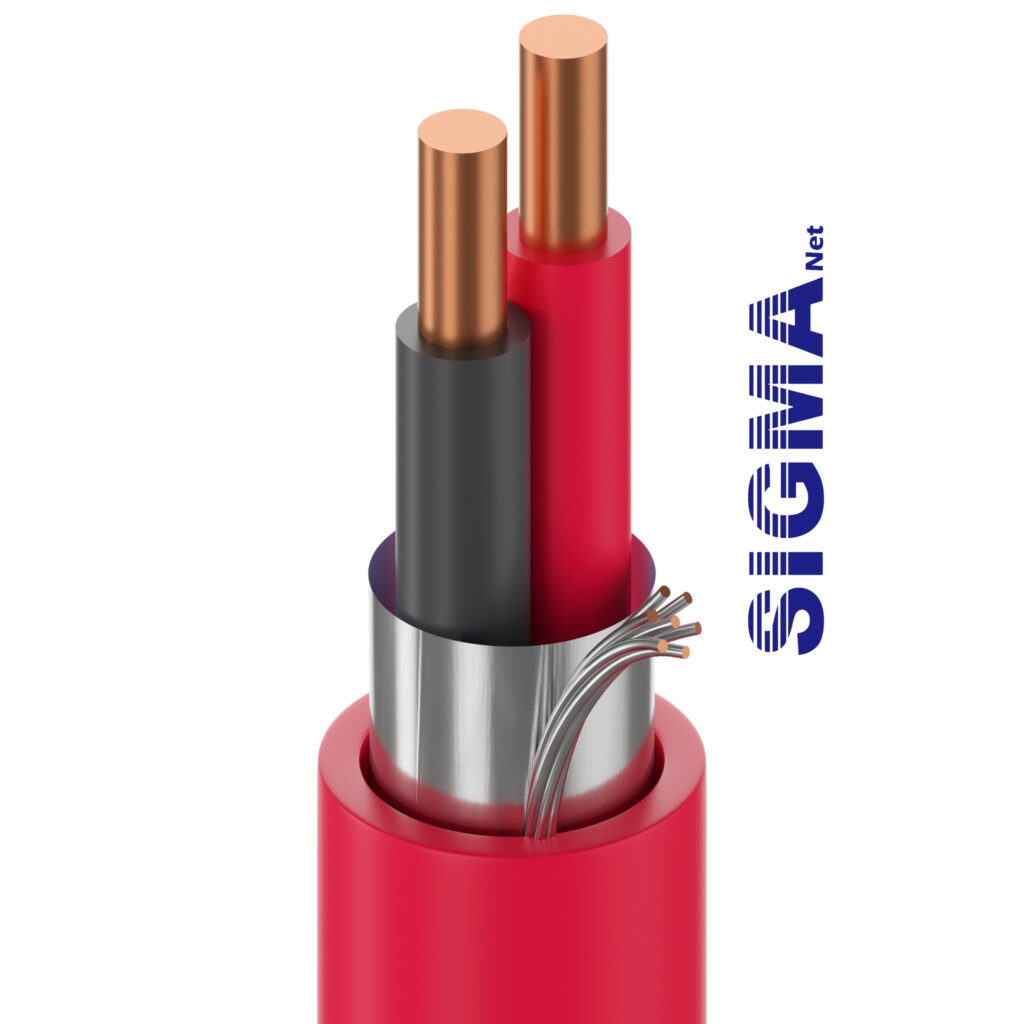

Electronic 2 C #16 Sol BC – PVC Ins Home Electronic Cable Electronic, 2 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR – By SIGMA.NET Electronic, 2 Conductor 16AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR. Request Quote Download brochure to know more about our products. Download Brochure   Product Overview Suitable Applications fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …) Construction DetailsCONDUCTOR Element No. of Elements Size Stranding Material Conductor(s) 2 16 Solid BC – Bare Copper INSULATION Material Nom. Thickness Nom. Insulation Diameter Color Code PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.048 in (1.2 mm) Black, Red OUTER SHIELD Shield Type Material Coverage Drainwire Type Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC OUTER JACKET Material Nom. Thickness Nom. Diameter PVC – Polyvinyl Chloride 0.036 in (0.91 mm) 0.241 in (6.12 mm) Electrical CharacteristicsELECTRICALS Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current 4.2 Ohm/1000ft 57.5 pF/ft (189 pF/m) 103.5 pF/ft (339.6 pF/m) 11 Amps per Conductor at 25ºC VOLTAGE UL Voltage Rating 300 V Mechanical CharacteristicsTEMPERATURE UL Temperature Operating 105°C -40°C To +105°C BEND RADIUS Stationary Min. Installation Min. 3.61 in (91.7 mm) 3.61 in (91.7 mm) Max. Pull Tension 80 lbs (36 kg) Bulk Cable Weight 34 lbs/1000ft Standards and Compliance Environmental Suitability Outdoor Flammability / Reaction to Fire UL1666 Riser, FT4, IEC 60332-1-2 CPR Compliance CPR Euroclass: Eca NEC / UL Compliance Article 760, CMR, FPLR AWM Compliance AWM 2464 CEC / C(UL) Compliance FAS105 European Directive Compliance EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) UK Regulation Compliance UKCA Mark APAC Compliance China RoHS II (GB/T 26572-2011) Other Standard Compliance(s) California State Fire Marshall Enhanced Fire Alarm Systems: SIGMA.NET Electronic Cable for Safety Introducing the SIGMA.NET Electronic Cable, a top-tier solution designed for fire alarms, indoor applications, and low-voltage analog signals. As the exclusive distributor of SIGMA.NET products in the GCC region, Buruj Al-Nahda E.S.T ensures that this cable delivers superior performance and reliability, making it the ideal choice for a wide range of electronic systems. Whether you’re upgrading your fire alarm system or enhancing your low-voltage control applications, the SIGMA.NET Electronic Cable is the perfect solution. Product Overview Construction: Features two solid 16 AWG bare copper conductors, PVC insulation, overall Beldfoil® shield, and a red PVC outer jacket. Applications: Ideal for fire alarms, indoor applications, low-voltage analog signals (4-20ma, 0-10v), and low-voltage control (24v). Electrical Characteristics: Offers a nominal impedance of 4.2 Ohm/1000ft and a maximum current of 11 Amps per conductor at 25ºC for optimal performance. Standards and Compliance: Compliant with UL1666 Riser, FT4, IEC 60332-1-2, CPR Euroclass Eca, Article 760, CMR, FPLR, AWM 2464, and other industry standards. Superior Performance and Reliability Enhanced Shielding: The overall Beldfoil® shield provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable signal transmission. Durable Design: The red PVC outer jacket and rugged construction make the SIGMA.NET cable suitable for outdoor use, offering durability and longevity in harsh environments. High Temperature Rating: With a UL temperature rating of 105°C, the SIGMA.NET cable can withstand high temperatures, making it suitable for a wide range of applications. Standards and Compliance CPR Euroclass Eca Compliance: The SIGMA.NET cable meets CPR Euroclass Eca standards, ensuring it meets strict safety and performance requirements. AWM 2464 Compliance: Compliant with AWM 2464 standards, the SIGMA.NET cable is suitable for a variety of applications. CEC / C(UL) Compliance: The SIGMA.NET cable is compliant with CEC / C(UL) standards, ensuring it meets stringent safety and performance requirements. Environmentally Friendly Design RoHS Compliance: The SIGMA.NET cable is RoHS compliant, ensuring it is free from hazardous substances and environmentally friendly. Sustainability: Compliant with EU Directive 2011/65/EU (RoHS 2) and EU Directive 2012/19/EU (WEEE), the SIGMA.NET cable meets stringent environmental standards. Conclusion Upgrade your electronic systems with confidence. The SIGMA.NET Electronic Cable offers unmatched performance, reliability, and efficiency, making it the ideal choice for fire alarms, indoor applications, and low-voltage control systems. Contact Buruj Al-Nahda E.S.T today to learn more about how SIGMA.NET cables can enhance your electronic systems. Related Products Electronic 2 C #16 Sol BC-PVC Electronic 2 C #16 Sol BC – PVC Ins Home Electronic Cable Electronic, 2 C #16 Sol BC, PVC Ins… Discover More Broadband Coax Series 6-18 AWG Solid BCCS Broadband Coax Series 6 – 18 AWG Solid BCCS Home Video Cable Broadband Coax, Series 6, 18 AWG… Discover More Category 6 Cable 4 Pair U/UTP Category 6 Cable 4 Pair U/UTP Home Data Cable Category 6 Cable, 4 Pair, U/UTP, PVC Indoor CPR Eca… Discover More Security & Sound 2 Conductor 18 AWG Security & Sound 2 Conductor 18 AWG Home Audio Cable Security & Sound, 2 Conductor 18 AWG… Discover More 10GB Category 6A Small Diameter Cable 10GB Category 6A Small Diameter Cable Home Data Cable 10GB Category 6A Small Diameter Cable, 4 Pair… Discover More Need Help? Don’t hesitate to contact us for more information. Contact Us Electronic 2 C #16 Sol BC – PVC Ins​
