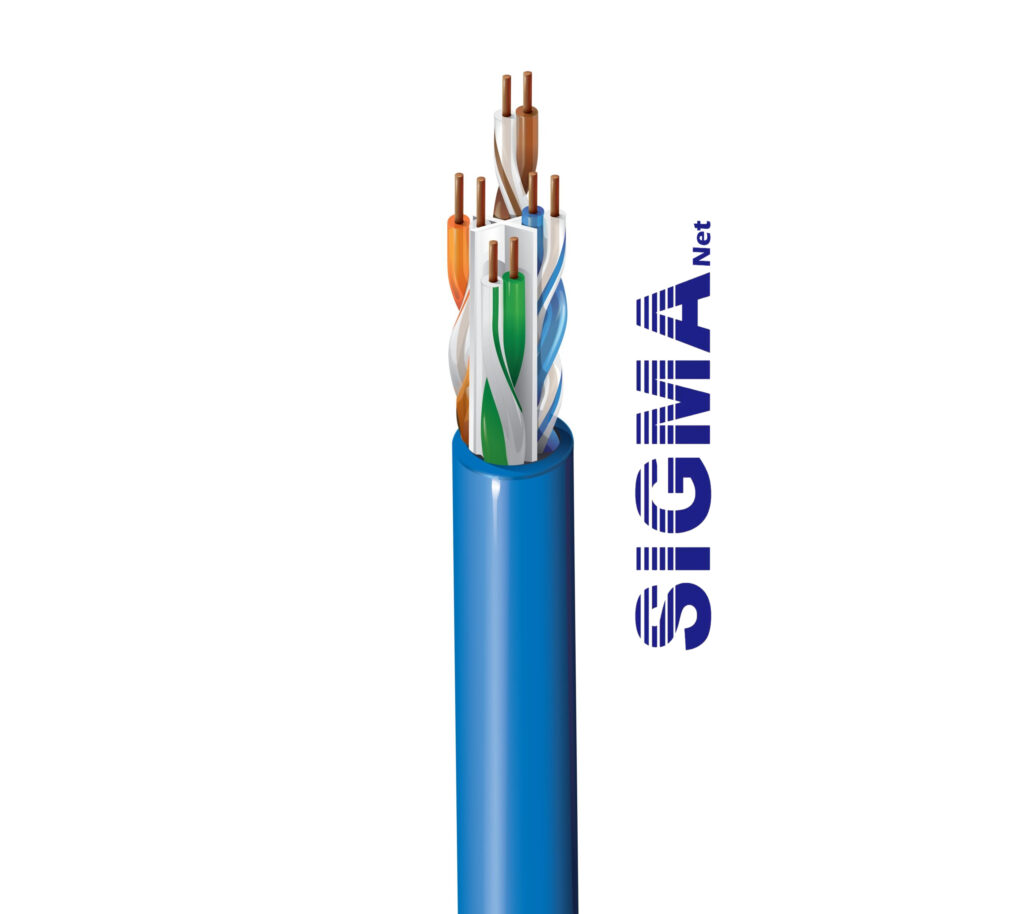

Category 6 Cable 4 Pair U/UTP
Category 6 Cable 4 Pair U/UTP Home Data Cable Category 6 Cable, 4 Pair, U/UTP, PVC Indoor CPR Eca – By SIGMA.NET Category 6 Premise Horizontal Cable (250MHz), 4-Pair, 23 AWG solid bare copper conductors, U/UTP, Polyethylene insulation, PVC jacket, CPR Eca. Request Quote Download brochure to know more about our products and prices. Download Brochure Product Overview Suitable Applications Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base – T (Gigabit Ethernet), 100 Base – T, 10 Base – T, FDDI, ATM Construction DetailsCONDUCTOR Element Size Stranding Material No. of Pairs No. of Elements Individual Pair 23 AWG Solid BC – Bare Copper 4 8 INSULATION Element Material Nom. Insulation Diameter Color Code Individual Pair PE – Polyethylene 0.96 mm (0.038 in) White/Blue & Blue, White/Green & Green, White/Orange & Orange, White/Brown & Brown CABLE CORE Description Separator 4 pairs twisted together Center Member (Patented X-Spline®) OUTER JACKET Material Nom. Diameter PVC – Polyvinyl Chloride 5.4 mm (0.21 in) Overall Cable Diameter (Nominal) 5.4 mm (0.21 in) Electrical CharacteristicsELECTRICALS Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance 95 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm DELAY Max. Delay Skew Nom. Velocity of Prop. 40 ns/100m 70% Table Notes Limits below 4 MHz are for information only. Reference standard: IEC 61156-5 Screening Class Type III Table Notes Coupling Attenuation VOLTAGE Voltage Rating 72 V DC Mechanical CharacteristicsTEMPERATURE Operating Installation -30°C to +60°C 0°C To +50°C BEND RADIUS Stationary Min. Installation Min. 23 mm (0.91 in) 46 mm Max. Pull Tension 80 N (18 lbf) Bulk Cable Weight 37 kg/km Standards and Compliance Environmental Suitability Indoor – Euroclass Eca Flammability / Reaction to Fire IEC 60332-1-2 CPR Compliance CPR Euroclass: Eca; CPR UKCA Class: Eca IEEE Compliance PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 Data Category Category 6 TIA/EIA Compliance ANSI/TIA 568.2-D ISO/IEC Compliance ISO/IEC 11801-1 CENELEC Compliance EN 50173-1, Segregation class according EN50174-2 = a European Directive Compliance EU CE Mark UK Regulation Compliance UKCA Mark Enhance Your Network Performance with SIGMA.NET Category 6 Cable Upgrade your network infrastructure with the SIGMA.NET Category 6 Cable, designed to deliver exceptional performance, reliability, and efficiency. As the exclusive distributor of SIGMA.NET products in the GCC region, Buruj Al-Nahda E.S.T ensures that this cable is the perfect choice for horizontal and building backbone installations. Whether you’re looking to support current applications or future-proof your network, the SIGMA.NET Category 6 Cable is the ideal solution. Product Overview Construction: 4 pairs of 23 AWG solid bare copper conductors, PVC jacket. Applications: Ideal for 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM, and more. Electrical Characteristics: Nominal characteristic impedance of 100 Ohm, max. conductor DCR of 95 Ohm/km, and more. Standards and Compliance: ANSI/TIA 568.2-D compliant, ISO/IEC 11801-1 compliant, CPR Euroclass Eca compliant, and more. Superior Performance and Reliability High-Quality Construction: The SIGMA.NET Category 6 Cable features 4 pairs of 23 AWG solid bare copper conductors, ensuring optimal signal transmission and durability. Enhanced Signal Integrity: With a nominal characteristic impedance of 100 Ohm, the SIGMA.NET cable provides reliable performance, even in the most demanding environments. Future-Proof Design: Support for current and future Category 6 and 5e applications, ensuring compatibility with a wide range of devices. Standards and Compliance CPR Euroclass Eca Compliance: The SIGMA.NET cable complies with the Construction Products Regulation (CPR) Euroclass Eca, ensuring it meets the highest safety and performance standards. IEEE 802.3bt Compliant: This cable is compliant with IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 standards, ensuring compatibility with a wide range of devices. Environmentally Friendly Design Low Smoke PVC Jacket: The PVC jacket is environmentally friendly and ensures minimal smoke and toxicity in case of fire, making it ideal for indoor use. RoHS Compliance: The SIGMA.NET cable complies with EU RoHS directives, ensuring it is free from hazardous substances and safe for the environment. Conclusion Upgrade your network infrastructure with confidence. The SIGMA.NET Category 6 Cable offers exceptional performance, reliability, and efficiency, making it the perfect choice for your networking needs. Contact Buruj Al-Nahda E.S.T today to learn more about how SIGMA.NET cables can benefit your business. Related Products Electronic 2 C #16 Sol BC-PVC Electronic 2 C #16 Sol BC – PVC Ins Home Electronic Cable Electronic, 2 C #16 Sol BC, PVC Ins… Discover More Broadband Coax Series 6-18 AWG Solid BCCS Broadband Coax Series 6 – 18 AWG Solid BCCS Home Video Cable Broadband Coax – CATV… Discover More Category 6 Cable 4 Pair U/UTP Category 6 Cable 4 Pair U/UTP Home Data Cable Category 6 Cable, 4 Pair, U/UTP, PVC Indoor CPR Eca… Discover More Security & Sound 2 Conductor 18 AWG Security & Sound 2 Conductor 18 AWG Home Audio Cable Security & Sound, 2 Conductor 18 AWG… Discover More 10GB Category 6A Small Diameter Cable 10GB Category 6A Small Diameter Cable Home Data Cable 10GB Category 6A Small Diameter Cable, 4 Pair… Discover More Need Help? Don’t hesitate to contact us for more information. Contact Us Category 6 Cable, 4 Pair, U/UTP, PVC Indoor CPR Eca
10GB Category 6A Small Diameter Cable
10GB Category 6A Small Diameter Cable Home Data Cable 10GB Category 6A Small Diameter Cable, 4 Pair, U/UTP, LSZH Indoor CPR Eca – By SIGMA.NET Category 6A Premise Horizontal Cable (550MHz), 4-Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Polyethylene Insulation, LSZH Jacket. Request Quote Download brochure to know more about our products and cost. Download Brochure Product Overview Suitable Applications Horizontal and building backbone cable; Support current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM Construction Details CONDUCTOR Size Stranding Material No. of Pairs No. of Elements 23 AWG Solid BC – Bare Copper 4 8 INSULATION Material Nom. Insulation Diameter Color Code PE – Polyethylene 1.18 mm (0.0465 in) White with Blue Strips & Blue, White with Orange Strips & Orange, White with Green Strips & Green, White with Brown Strips & Brown CABLE CORE Description Separator 4 pairs twisted to cable core covered with a polyester foil Center Member (Patented X-Spline®), EquiBlock™ Barrier Technology OUTER SHIELD Shield Type Material Tape EquiBlock® OUTER JACKET Material Nom. Diameter LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.0 mm (0.28 in) Overall Cable Diameter (Nominal) 7.0 mm (0.28 in) Electrical CharacteristicsELECTRICALS Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance 95 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm DELAY Frequency Max. Delay Skew Nom. Velocity of Prop. 100 MHz 45 ns/100m 67% VOLTAGE Voltage Rating 72 V DC Mechanical CharacteristicsTEMPERATURE Operating Installation -30°C to 60°C 0°C To +50°C BEND RADIUS Stationary Min. Installation Min. 29 mm (1.1 in) 58 mm Max. Pull Tension 110 N (25 lbf) Bulk Cable Weight 50 kg/km Standards and Compliance Environmental Suitability Euroclass Eca Flammability / Reaction to Fire IEC 60332-1-2 CPR Compliance CPR Euroclass: Eca; CPR UKCA Class: Eca IEEE Compliance PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 Data Category Category 6A TIA/EIA Compliance ANSI/TIA 568.2-D ISO/IEC Compliance ISO/IEC 11801-1, IEC 61034-2 – Smoke Density Min Transmittance = 60% CENELEC Compliance EN 50173-1, Segregation class according EN50174-2 = b European Halogen Free Standards IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3 European Directive Compliance EU CE Mark UK Regulation Compliance UKCA Mark Experience Unparalleled Performance with SIGMA.NET 10GB Category 6A Small Diameter Cable In today’s fast-paced digital world, high-speed connectivity is no longer a luxury but a necessity. Meet the demands of modern networking with the SIGMA.NET 10GB Category 6A Small Diameter Cable, exclusively distributed by Buruj Al-Nahda E.S.T in the GCC region. Designed to deliver exceptional performance, reliability, and efficiency, this cable is the perfect choice for a wide range of applications. Product Overview High-Quality Construction: The SIGMA.NET cable features 4 pairs of 23 AWG solid bare copper conductors, U/UTP, LSZH jacket, ensuring optimal signal transmission and durability. Advanced Technology: With a nominal characteristic impedance of 100 Ohm, max. conductor DCR of 95 Ohm/km, and other cutting-edge features, this cable is designed to meet the highest industry standards. Versatile Applications: Whether you’re building a new network infrastructure or upgrading an existing one, this cable is suitable for horizontal and building backbone cable applications. Future-Proof Design: Support for current and future Category 6A and 6 applications, including 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM, and more. Superior Performance and Reliability Enhanced Signal Integrity: The solid bare copper conductors ensure minimal signal loss, delivering reliable performance even in the most demanding environments. Exceptional Data Transmission: With support for data rates up to 10 Gigabit Ethernet, the SIGMA.NET cable provides the bandwidth you need for high-speed data transmission. Robust Construction: The LSZH jacket provides excellent protection against environmental factors such as moisture, heat, and chemicals, ensuring long-lasting performance. Standards and Compliance CPR Euroclass Eca: The SIGMA.NET cable complies with the Construction Products Regulation (CPR) Euroclass Eca, ensuring it meets the highest safety and performance standards. IEEE 802.3bt Compliant: This cable is compliant with IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 standards, ensuring compatibility with a wide range of devices. ANSI/TIA 568.2-D: Meets ANSI/TIA 568.2-D standards for enhanced performance and reliability. Environmentally Friendly Design Low Smoke Zero Halogen (LSZH) Jacket: The LSZH jacket is environmentally friendly and ensures minimal smoke and toxicity in case of fire, making it ideal for indoor use. Halogen-Free Compliance: The SIGMA.NET cable complies with European Halogen-Free Standards, ensuring it is safe for both users and the environment. Conclusion Upgrade your network infrastructure with confidence. The SIGMA.NET 10GB Category 6A Small Diameter Cable offers unparalleled performance, reliability, and efficiency, making it the perfect choice for your networking needs. Contact Buruj Al-Nahda E.S.T today to learn more about how SIGMA.NET cable can benefit your business. Related Products Electronic 2 C #16 Sol BC-PVC Electronic 2 C #16 Sol BC – PVC Ins Home Electronic Cable Electronic, 2 C #16 Sol BC, PVC Ins… Discover More Broadband Coax Series 6-18 AWG Solid BCCS Broadband Coax Series 6 – 18 AWG Solid BCCS Home Video Cable Broadband Coax – CATV… Discover More Category 6 Cable 4 Pair U/UTP Category 6 Cable 4 Pair U/UTP Home Data Cable Category 6 Cable, 4 Pair, U/UTP, PVC Indoor CPR Eca… Discover More Security & Sound 2 Conductor 18 AWG Security & Sound 2 Conductor 18 AWG Home Audio Cable Security & Sound, 2 Conductor 18 AWG… Discover More 10GB Category 6A Small Diameter Cable 10GB Category 6A Small Diameter Cable Home Data Cable 10GB Category 6A Small Diameter Cable, 4 Pair… Discover More Need Help? Don’t hesitate to contact us for more information. Contact Us 10GB24 – 10GB Category 6A Small Diameter Cable, 4 Pair, U/UTP, LSZH Indoor CPR Eca
